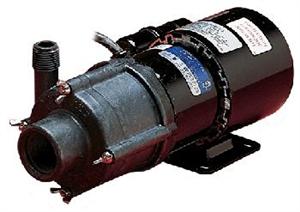

MD-HC Series Model TE-4-MD-HC
The Little Giant MD-HC series features leakproof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled Ryton for excellent chemical resistance.
Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
Thermally protected totally enclosed fan-cooled split capacitor motor with sleeve bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).
Specific Gravity - up to 1.1.
Ambient Air Temperature - up to 77F (25C).
Fluid Temperature Up to 200F.
Item Number: 582604
Model Number: TE-4-MD-HC
