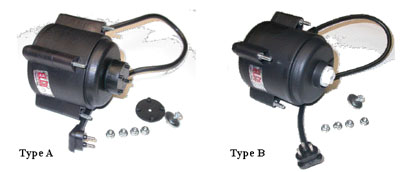

EC Motors
  • Electronically Commutated - 115 V, 50/60 Hz.
  • Moisture protection: totally enclosed - IP65
  • Operation: all angle, continuous air over
  • Rotation: CCW from shaft end
  • Bearings: Long-Life Sealed Ball Bearings
  • Cord terminals: various plugs, see table
  • Fan blade hub: 4 pins (.133"?? on 1" ? B.C.
  • Front mounting: M4 studs on 3.72” B.C. for shroud / guard
  • Single packed: Box dim. 5" x 5" x 5"
  • Accessories: nuts, screws, American fan blade adapted
  • DROP-IN Replacement to front mount shaded pole / ECM













Fan Coil Motors

  • Type: PSC
  • Double shaft
  • Volt: 115 / 60 Hz.
  • Enclosure: open end-shields
  • Protection: thermal
  • Capacitor included
  • Bearings: Ball Bearing NEW!
  • Protection class: IP20
  • Insulation class: B
  • Base mount included
  • Single packed
  • Box dim.: 8" X 8" X 26"




      NU Series
  • Shaded pole – 4 poles – 115 or 230V, 50/60 Hz.
  • Frame: 3.3” square, totally enclosed
  • Operation: all angle, continuous air over
  • Rotation: CCW from shaft end
  • Bearings: Sintec sleeve, permanently lubricated
  • Cord: 21/23” lead length with #10 ring studs
  • Fan blade hub: 4 pins (.133”Ø) on 1” Ø CL.
  • Foot mounting: 4 holes Ø .146” (1.126”x .626”)
  • Front mounting: for shroud / guard
  • Rear mounting: 3 holes Ø 8-36 UNF @ 120° on 2.835” BC
  • Single packed: Box dim. 5”x 5”x 5”
  • Accessories: nuts, screws, American fan blade adapter
